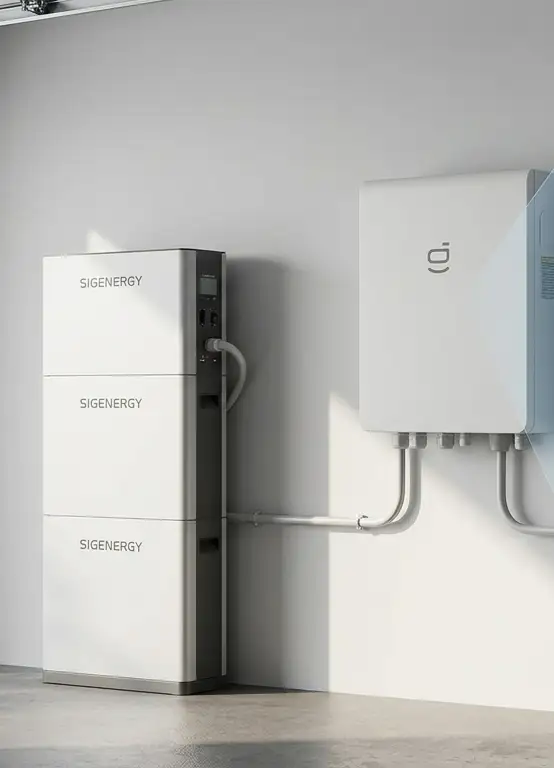

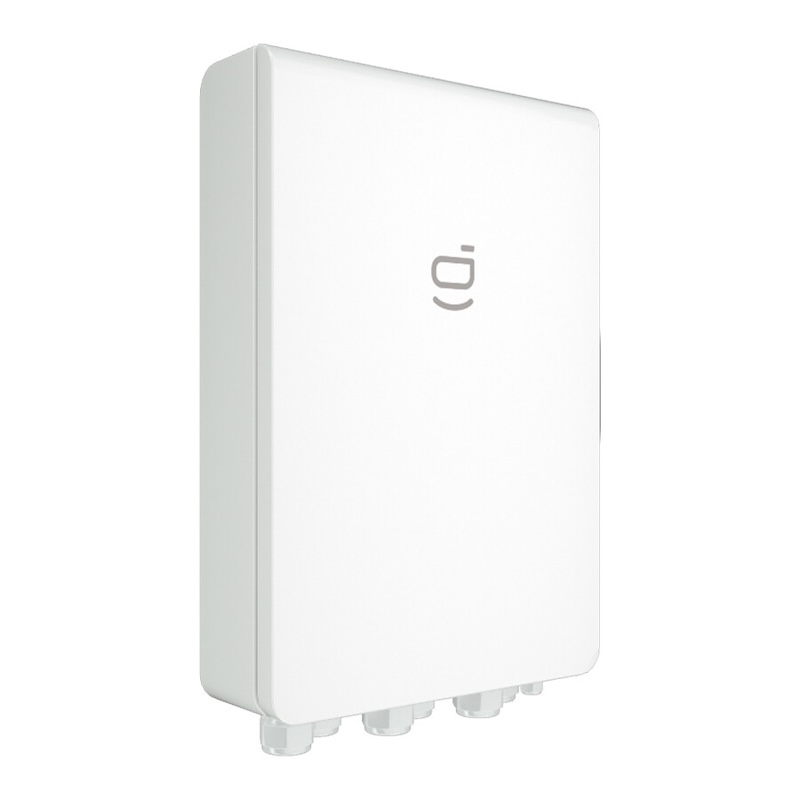

The Sigenergy Sigen Energy Gateway HomeMax TP (Three-Phase) is an intelligent home energy management switchboard. It functions as the central nervous system for the SigenStor Home Energy System, orchestrating real-time power routing between solar arrays, battery storage stacks, the utility grid, and backup generators.
| Parameter | Specification Details |
|---|---|
| Grid Connection Type | Three-Phase |
| Nominal AC Voltage | 380 V / 400 V |
| Nominal AC Current | 76 A |
| Nominal AC Power Rating | 50 kW |
| Nominal AC Frequency | 50 / 60 Hz |
| Backup Switch Transition Time | 0 ms (True uninterruptible power supply) |
| Reverse Power Protection Response | 350 ms |
| Ingress Protection Rating | IP54 |
| Dimensions (W x H x D) | 510 mm x 750 mm x 179 mm |
| Weight | 23 kg |
| Communication Protocols | Fast Ethernet, RS485, Dry Contact |
The Sigenergy Sigen Energy Gateway HomeMax TP (Three-Phase) is an intelligent home energy management switchboard. It functions as the central nervous system for the SigenStor Home Energy System, orchestrating real-time power routing between solar arrays, battery storage stacks, the utility grid, and backup generators.
| Parameter | Specification Details |
|---|---|
| Grid Connection Type | Three-Phase |
| Nominal AC Voltage | 380 V / 400 V |
| Nominal AC Current | 76 A |
| Nominal AC Power Rating | 50 kW |
| Nominal AC Frequency | 50 / 60 Hz |
| Backup Switch Transition Time | 0 ms (True uninterruptible power supply) |
| Reverse Power Protection Response | 350 ms |
| Ingress Protection Rating | IP54 |
| Dimensions (W x H x D) | 510 mm x 750 mm x 179 mm |
| Weight | 23 kg |
| Communication Protocols | Fast Ethernet, RS485, Dry Contact |
