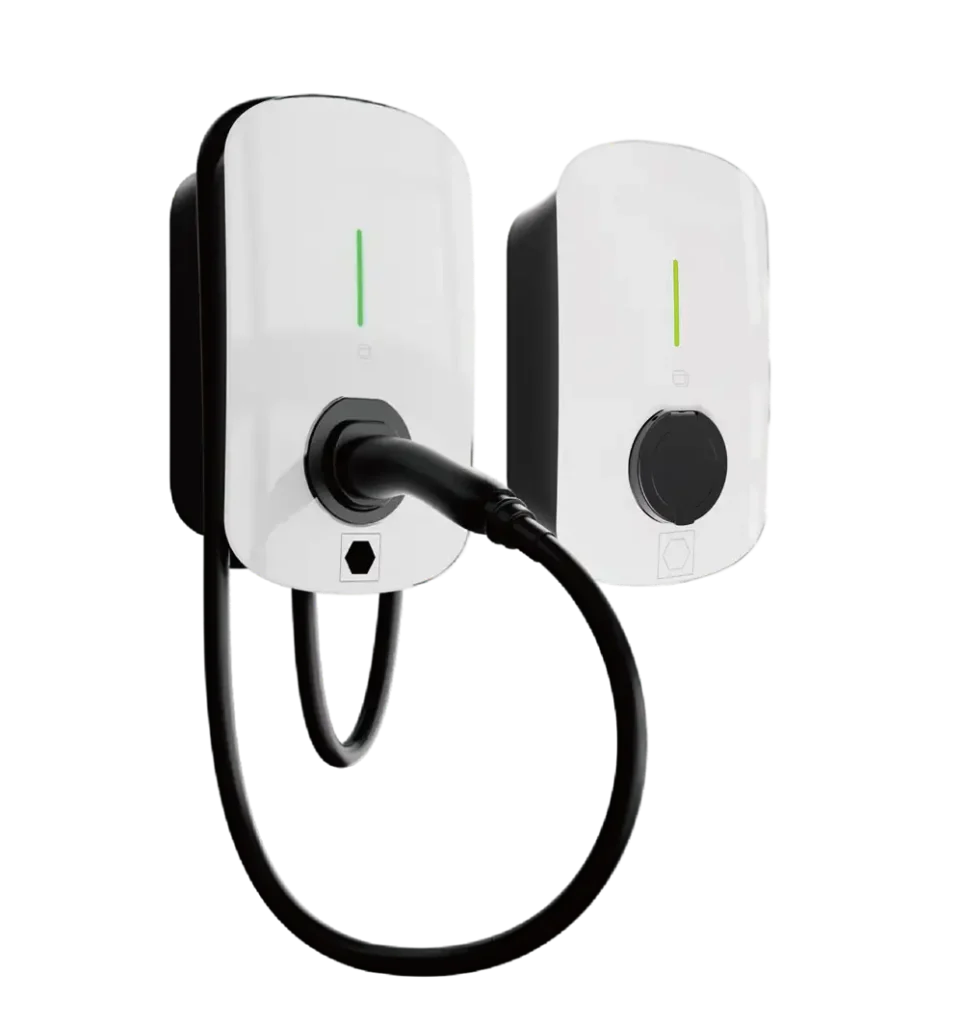

The Sigenergy Sigen EV AC Charger 22kW is a high-power, intelligent three-phase residential and commercial electric vehicle wallbox. Engineered to integrate into the SigenStor Home Energy System, it dynamically switches phases and scales power output up to 22 kW to leverage maximum renewable energy.
| Parameter | Specification Details |
|---|---|
| Nominal Charging Power | 22 kW (22,000 W) |
| Input Connection Type | Three-Phase (3P + N + PE) |
| Nominal AC Supply Voltage | 380 V / 400 V / 415 V AC (50 / 60 Hz) |
| Maximum Operating Current | 32 A (per phase) |
| Vehicle Connection Options | Type 2 tethered (5m cable) or Type 2 socket with shutter |
| Automatic Phase Switching | Yes (Transitions between 1-phase and 3-phase) |
| Ingress & Impact Protection | IP65 weatherproofing & IK10 reinforced glass casing |
| Dimensions (W x H x D) | 234 mm x 384 mm x 139 mm |
| Weight | ~4.5 kg (Socket version) / ~6.4 kg (Tethered version) |
| Connectivity & Protocols | 4G LTE, Wi-Fi, Fast Ethernet, RS485, and open OCPP |
The Sigenergy Sigen EV AC Charger 22kW is a high-power, intelligent three-phase residential and commercial electric vehicle wallbox. Engineered to integrate into the SigenStor Home Energy System, it dynamically switches phases and scales power output up to 22 kW to leverage maximum renewable energy.
| Parameter | Specification Details |
|---|---|
| Nominal Charging Power | 22 kW (22,000 W) |
| Input Connection Type | Three-Phase (3P + N + PE) |
| Nominal AC Supply Voltage | 380 V / 400 V / 415 V AC (50 / 60 Hz) |
| Maximum Operating Current | 32 A (per phase) |
| Vehicle Connection Options | Type 2 tethered (5m cable) or Type 2 socket with shutter |
| Automatic Phase Switching | Yes (Transitions between 1-phase and 3-phase) |
| Ingress & Impact Protection | IP65 weatherproofing & IK10 reinforced glass casing |
| Dimensions (W x H x D) | 234 mm x 384 mm x 139 mm |
| Weight | ~4.5 kg (Socket version) / ~6.4 kg (Tethered version) |
| Connectivity & Protocols | 4G LTE, Wi-Fi, Fast Ethernet, RS485, and open OCPP |
